Flanged Heater for Petrochemical Process

Client requirement:

A client in the petro-chemical industry requires a large capacity heater  to boill off Mono Ethylene Glycol during the gas transfer process.

Challenge:

  • High pressure sealing
  • Hazardous environment
  • Moisture proofing of elements
  • Safety features to prevent over-temperature hazard

Solution:

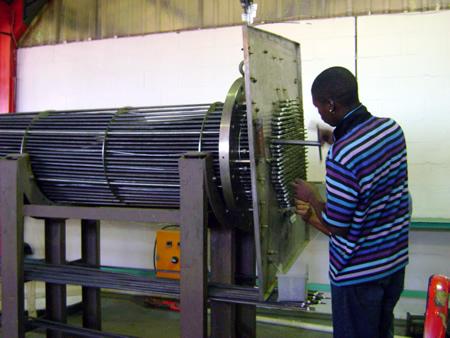

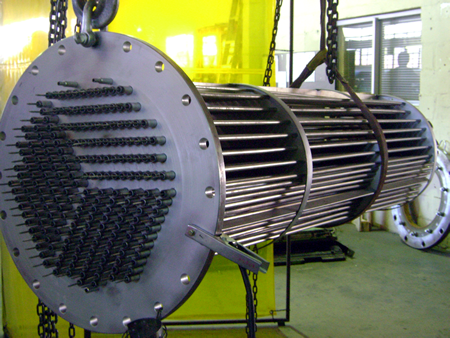

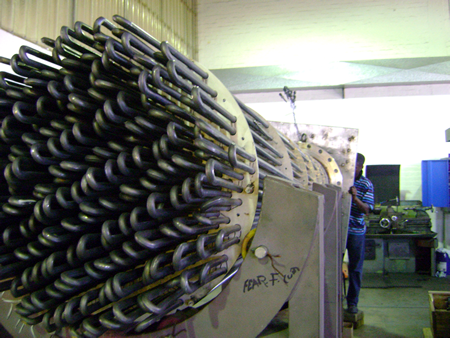

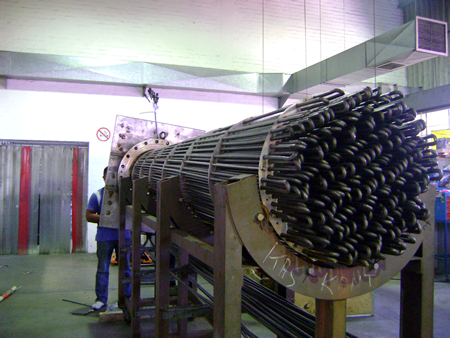

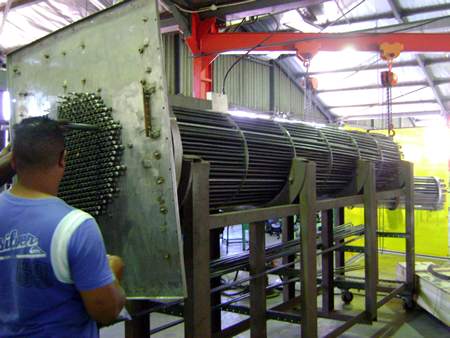

We designed and manufactured 1.4mW electrical heater bundles. Special olives were used for compression fitting of elements. Large diameter elements with low Wattsdensity and thermostatically limited sheath temperature were installed to eliminate fire hazard.

Detailed attention was given to the method of sealing individual heaters in the flange.
