Temperature Sensors: Accessories

Connectors, plugs, cable brackets, sensor cables and compression fittings

The sensor accessories in this section are selected due to their suitability for rugged environment, high temperature resistance and wide application in Industry.

We stock various components for all types of temperature sensors (RTDs, Thermocouples type 'J'', 'K', 'T', 'R', 'S', PT100s etc.) and manufacture temperature measurement probes to your specific requirements.

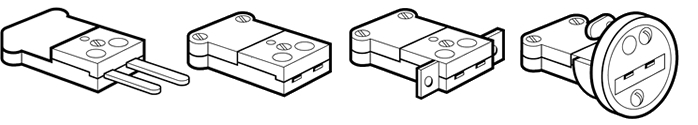

Mini connectors for Temperature Sensors, Type 'J' and 'K'

Click on picture of mini connector of your choice to add it to your enquiry list.

Standard connectors for RTDs & T/C type 'J'/ 'K'/ 'R'/ 'S'

Standard Connector:
Male,
type 'J'/ 'K'/ 'T'/ 'R'/ 'S'

Standard Connector:
Female,
type 'J'/ 'K'/ 'T'/ 'R'/ 'S'

Standard Connector:
Panelmount, female,
type 'J'/ 'K'/ 'T'/ 'R'/ 'S'

UMD plugs and cable brackets

Plug/
Round UMD connector:
Angled or straight

Cable Bracket:
Mini or standard connector

Sensor Cables

Sensor Cable Type 'J':
PVC-insulated,
105°C max

Sensor Cable Type 'J':
PTFE insulated cable,
250°C max

Sensor Cable Type 'J':
Fibreglass insulated,
350°C max

Sensor Cable Type 'K':
PVC-insulated,
105°C max

Sensor Cable Type 'K':
PTFE insulated,
250°C max

Sensor Cable Type 'K':
Fibreglass insulated,
350°C max

Sensor Cable 'RTD':
PVC-insulated,
105°C max

Sensor Cable 'RTD':
PTFE insulated,
250°C max

Sensor Cable 'RTD':
Fibreglass insulated,
350°C max.

Compression Fittings

Compression Fittings:
Brass,
1/4 - 1/2"NPT

Compression Fittings:
Stainless Steel,
1/4 - 1/2"NPT

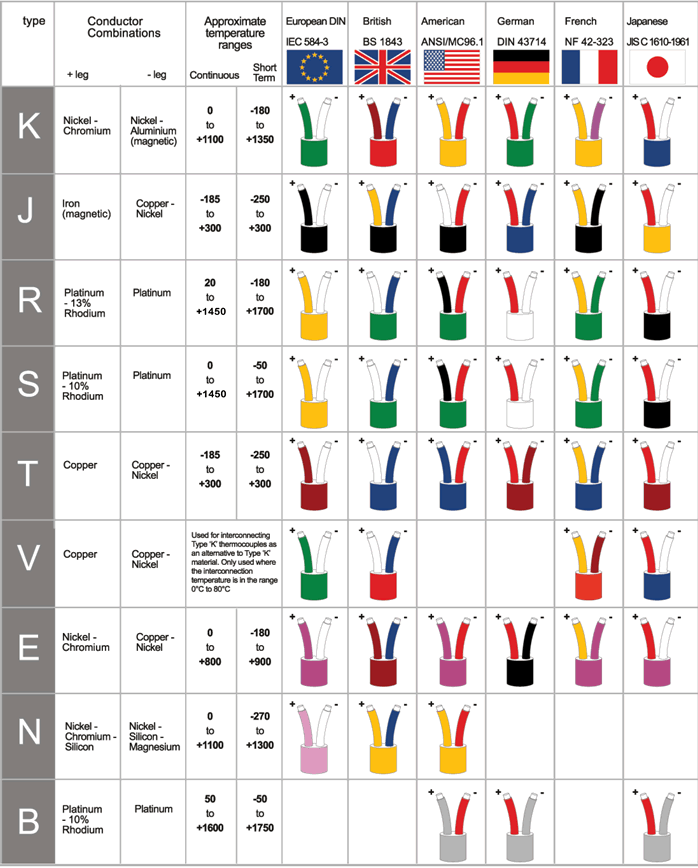

International Thermocouple Color Codes

Download: T/C international colour codes chart Contact us: Temperature sensor component requirements
