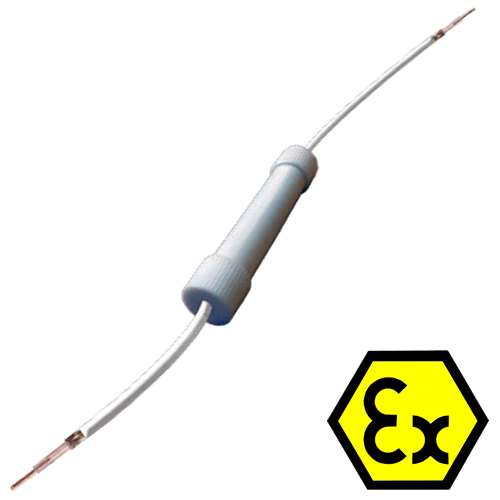

Connect Series Heating Cables and make cold lead connections to be terminated in a junction box.
Each kit contains two terminations.
The spacer inside the housing ensures the electrical integrity of the connection. This makes the CKTES compatible with the complete range of Thermon Series Heating Cables, yet permitting easy assembly with a crimping tool.
With the same ease, different Thermon Series Heating Cables can be terminated in one CKTES connection kit. Additionally, circuit extension or repair can be achieved by combining two heating cables in the CKTES connection kit.

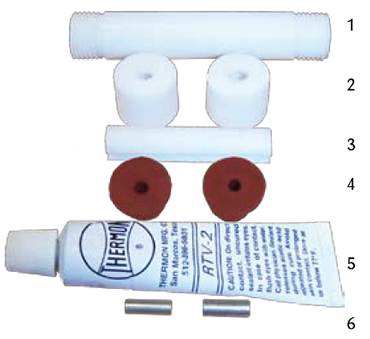

Heating cable and cold lead are terminated by connecting the cable ends together with crimp connectors (6). These are kept apart by a spacer (3).
The housing (1) will be filled with sealant (5) to avoid water ingress.
The cable entries are sealed by a combination of rubber grommets (4) which are tightened with screw caps (2).
Features
- Installation does not require gas torch or hot air fan
- Installation may be performed inside potentially explosive areas
- For power connections, Power and End Terminations Kits (PETK) are available
- ATEX and IECEx approval for hazardous areas.
Certifications/ Approvals
 | Ex eb IIC T2 to T6 Ex tb IIIC T260°C to T85°C IP66 SIRA 10ATEX3368X IECEx SIR10.0195X |
Ratings
- Nominal voltage: up to 750V
- Nominal current: up to 50A
- Minimum installation temperature: -60°C
- Maximum operating temperature: 260°C
- IP-Protection: IP66
- CKTES-1 Cable range: 2,9-15 Ohm/km
- CKTES-2 Cable range: 17,8-8000 Ohm/km
