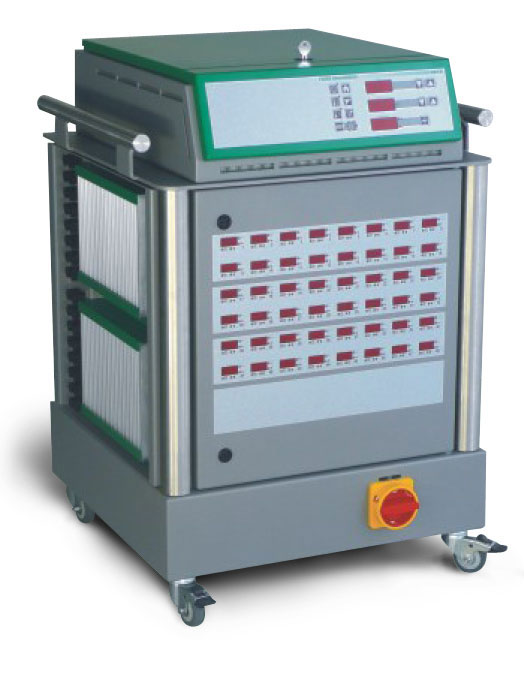

Feller MCS: Multi Channel Temperature Controller
Stock Code:
SKU: product options
Based on several years of close co-operation with the plastics industry the established series MCS introduces new features in a new design at an attractive price performance ratio as ever before. The more compact hotrunner controllers combine technology state-of-the-art with high level operation comfort and increased service capability. A three-side illuminated LED-strip signalises three different operation states widely visible.
Housing / design
- Steel housing IP20 by 2 variations
- Construction for different heights
- Ambient temperature max. 60°C / 140°F
- Designed for 2 to 128 control- zones, 256 or more zones with operation monitor MCScontrol
Performance and features
- Alarm-outputs (isolated) via multi-pin plug
- Data interface RS485, CAN-Bus, (optional Bluetooth, Ethernet, USB, RS232)
- Parallel heater-current supervision
- Power per zone 230 VAC / 16 A, 80% SF
- NSS (fused sensor-inputs against net-voltage > 10 V)
- Power supply via CEE-connector, cable length 3 m
- Safety power OFF, main relay 400 V/50/60Hz
- Output fuses 16 A ff
- Digital control inputs 24 VDC
- Multi-pin connectors, according to customer's demand or standard sensor and heater separated
Control electronics
- Temperature detection each 250 ms up to 128 zones
- Alarms for Low-temperature, High-temperature, broken sensor, shorted sensor, changed polarity, system fault,current deviation, output rate supervision
- Individual alarm delay
- Internal resolution 1/10 K
- Outputs pulsed or phase angle controlled, automatic or manually selectable
- Diagnosis program to detect external wiring mistakes
- Leakage current supervision with intelligent dry-out routine
- Controlled by micro-processor for up to 128 control loops in one unit
- Parameter level locked by password
- Control range up to 700°C / 999°F
- Robust self optimising control
- Self tuning to enable
- Soft-start-function with automatic dryout at 100°C / 212°F, if required
- Setpoint programs, 6 individual including all para- meters
- Manual mode in case of broken sensor, manually or automatic, following mean values or reference-zones
- Thermocouple inputs Fe-CuNi; in option Pt100/2L
- Groups for multiple operation
- Boost-function to enable
- Monitor zones for additional temperature supervision
- Selection °C / °F
- Supervision of output rate against nominal values
- Combined heating
- Power supervision
Operation
- Easy operation, three variations of display available, foil-keys, multi-line LC-display with data wheel or touch screen
- Separate indication with comparison setpoint/ actual value for operation
- Selection of up to 6 individual groups of zones
- Single indicators for all zones including control mode and group-selection, selectable for setpoints, actual values, deviations, output rates and current values
- Illuminated LED- strip for 3 different states
- Failure protocol via display
- Help menu via display
