ZP-L/S-XP: Ex-Junction Box
Stock Code:
SKU: RHD-M-ZP-L-XP

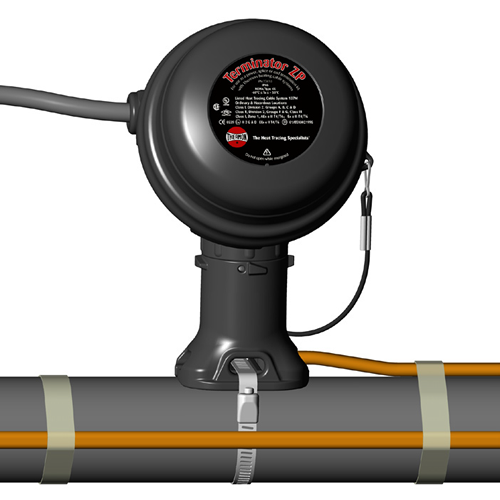

This nonmetallic pipe-mounting junction box is designed specifically for rapid, trouble-free installation of heat tracing cables.
The cables are fed into the junction box through a hollow neck which protects the cables from damage during lagging.
ZP-L-XP junction boxes are certified to the ATEX directive for use in Category 2 and 3 (Zone 1 and 2) classified areas.
Notes:
The integral design combines the pipe-mounted fitting, heating cable grommet and cable strain relief into a single assembly.
Screws for securing the covers of the kits have been eliminated to simplify cover installation while providing additional security.
A tool is required to remove the cover after installation:

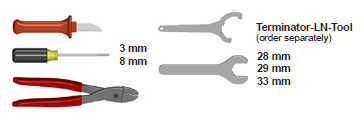

(tools required for installation)
(tools required for installation)
- Enclosure rating: IP66
- Maximum pipe exposure temperature 1: 250°C
- Minimum installation temperature 2: -60°C
- Operating ambient temperature: -60°C to +55°C
- Maximum voltage rating: 750 Vac

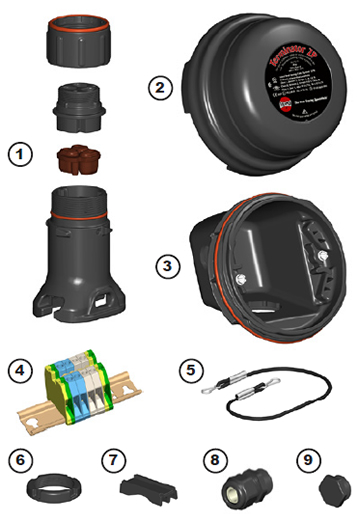

Expediter Assembly:Support Cap w/ O-ringThreaded Grommet CompressorGrommetSupport Base w/ O-ring- Junction Box Lid
- Junction Box Base w/ O-ring
- Terminal Blocks w/ DIN Rail
(Refer to terminal specifications for maximum allowable wire size) - Junction Box Lid Cord
- Nut
- Banding Guide
- Power Gland
- Blind Plug

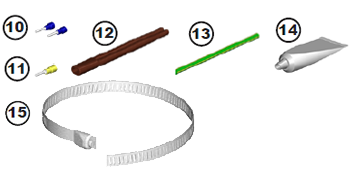

- Conductor Wire Pins (2x per cable)
- Braid Wire Pin (per cable)
- Power Connection Boot (per cable)
- Ground Sleeve (per cable)
- RTV Tube (per cable)
- Banding
 | IP66 NEMA/Type 4X -60°C ? Ta ? +55°C Listed Heat Tracing Cable System 137M Ordinary & Hazardous Locations |
 | Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups F & G, Class III |
 | Class I, Zone 1, AEx e II T4-T6 Ex e II T4-T6 |
 | 0539  II 2 G & D Ex e II T4-T6 DEMKO 06ATEX0622119 |
