Thermon CompuTrace: Electric Heat Trace Design Software
Stock Code:
SKU: Thermon CompuTrace
This optimised software package offers engineers a comprehensive, easy to use & robust
heat tracing design tool.
Now available, free of charge, available via our corporate website thermon.com:
Thermon's CompuTrace Design Suite has set a new standard in heat tracing design.
The software offers engineers a comprehensive and robust tool.

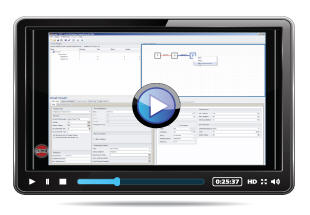

Take a look at our download section for a Quick Start Guide to lead you through the installation - and find a short video introduction on thermon.com for more information.
Features & Benefits

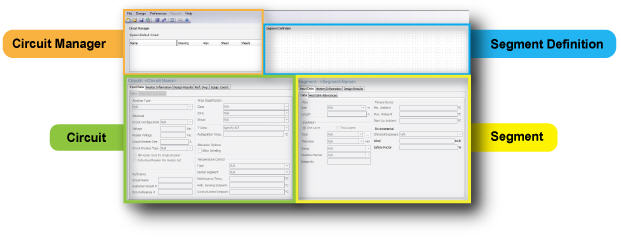

- Interactive circuit layout for piping segmentation
- Numerous connection design possibilities
- User defined components, insulation, pipes, valves, flanges, pumps and supports
- User defined default circuit reduces repetitive design input
- Ability to include electrical loads external to CompuTrace
- Collaborate with multiple users on server projects
- Filter BOM based on module, work package or area
- Import data from Excel line list
- User friendly interface
Minimum System requirements
- 1.5 Ghz processor
- 1 Gigabyte RAM
- 100 Gigabyte hard disk
- USB 2.0 port
- Screen resolution 1280 x 768
- Windows 7 or 8
